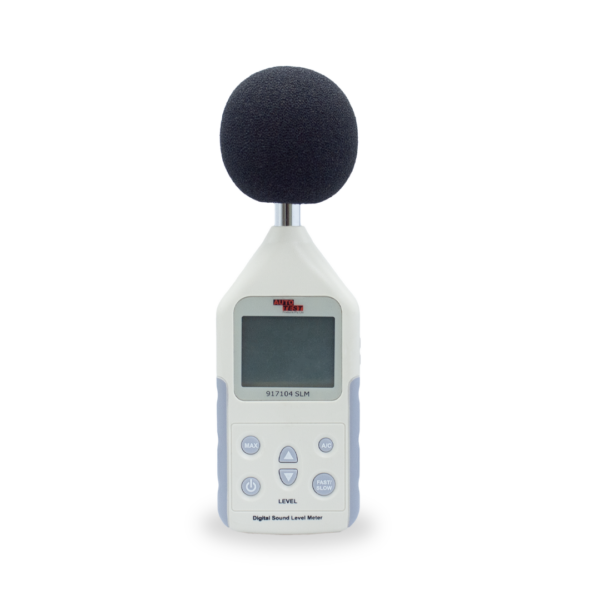

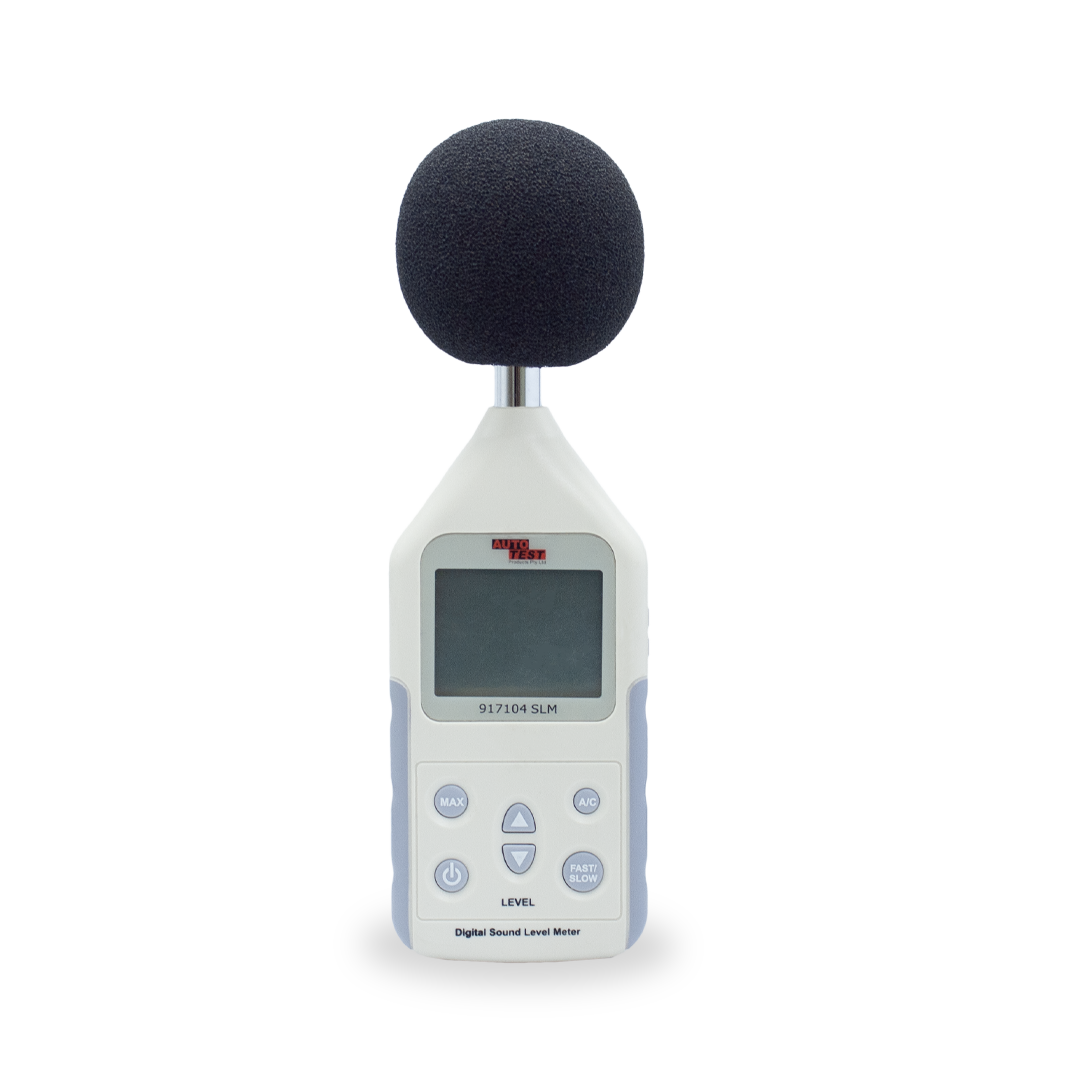

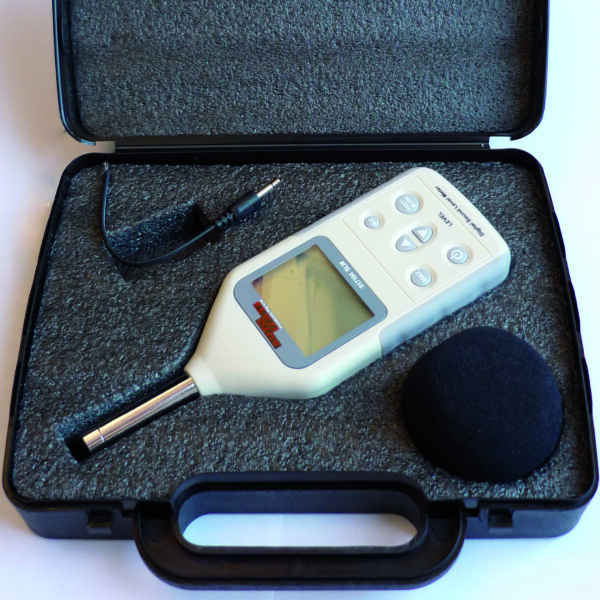

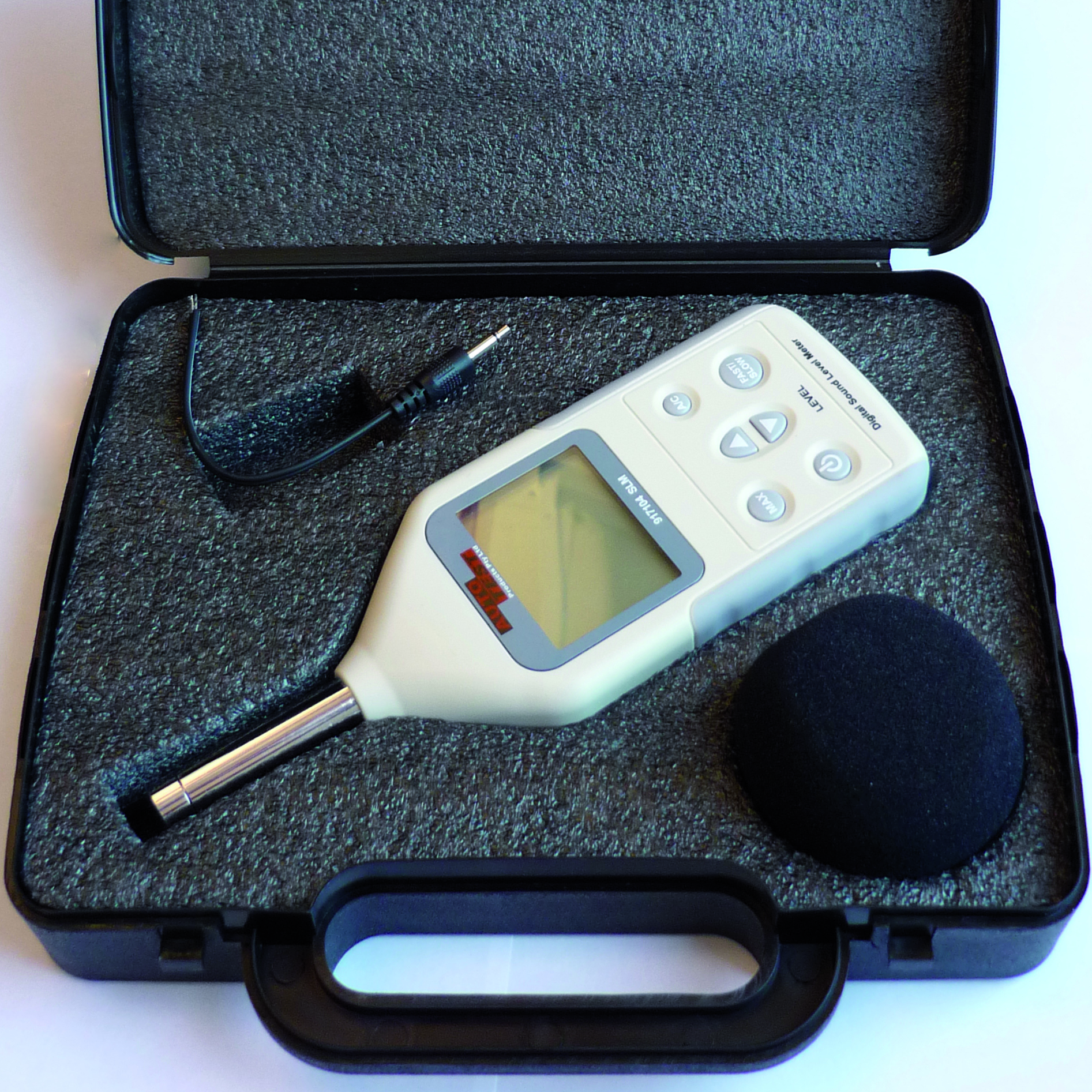

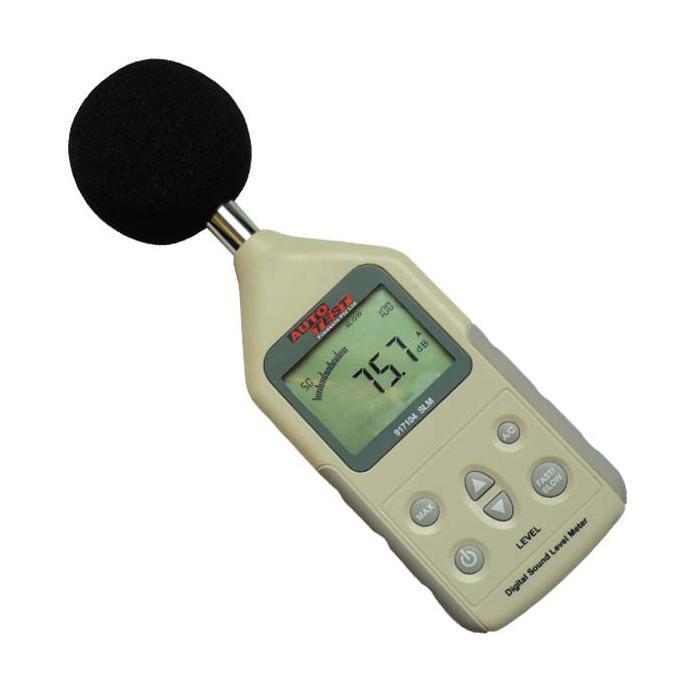

It is used to measure and monitor noise levels to ensure that volume levels are within tolerances or an expected range in any industrial or domestic application. This sound and vibration tool is commonly used to test automotive exhausts volume in road worthy checks carried out by an Approved Inspection Station (AIS). A sound level meter can also be used to monitor sound levels within workplaces, such as factories and plants and ensure that employees are guided to wear hearing protection when excessive noise levels are present. It is also commonly used on construction sites when commercial machinery such as excavators and bulldozers are used. Other uses include road noise studies for setting up sound breaks along freeways and for ensuring concerts and public events maintain an acceptable volume within local regulations. Sensitivity can be adjusted for different ambient conditions and environments.
Operation Directions:
| Accuracy | ±1.5dB |
| Frequency Range | 31.5Hz to 8.5kHz |
| Linearity Range | 50dB |
| Measuring Level | 30 – 130dBA, 35 – 130dBC |
| Frequency Weighting | A, C |
| Digital Display | 5 digits |
| Resolution | 0.1dB |
| Bar Graph | 50dB scale at 1dB step for monitoring current sound pressure level |
| Display Period | 50mS |
| Level Ranges | 30 – 80dB; 50 – 100dB 60 – 110dB; 80 – 130dB Overrange indicator;underrange indicator |
| AC Output | 1.707 Vrms at FS output inpedance approx 600Ω |
| DC Output | 100mV/ dB output impedance approx 1000Ω |
| Time Weighting | Fast/ Slow |
| Microphone | ½inch Electret Condenser Microphone |
| Max | Maximum Hold |
| Power Supply | 1*9V alkaline cells or DC 9V adapter |
| Power Life About | 30hrs (alkaline cells) |
| Self Calibration Time | 10 sec (at turn on) |
| Operating Temperatur | e 0°C – 40°C 10% to 80% RH |
| Storage Temperature | -10°C to 60°C |

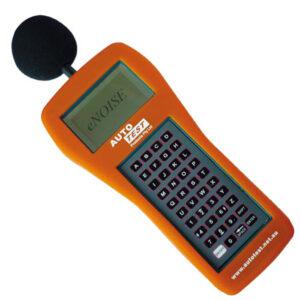

Vehicle Exhaust Noise
