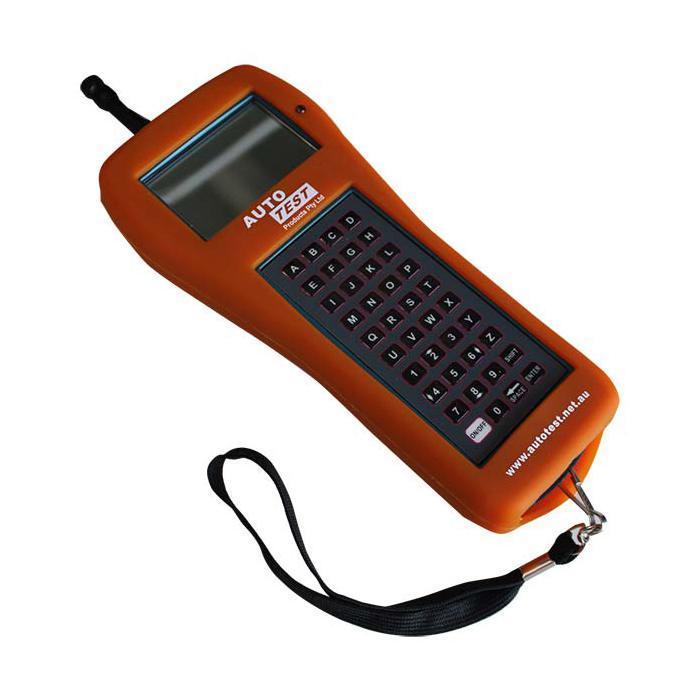

BAMbino is the world’s first portable Bearing Acoustic Monitor that provides accurate, easy, and early detection of faulty idler bearings. BAMbino is a handheld portable instrument that extracts bearing fault signatures measured from a distance of 0.1m to 3m away from the belt. A visual and audible alarm gives early notice of bearing damage, allowing forward planning of cost-effective maintenance.

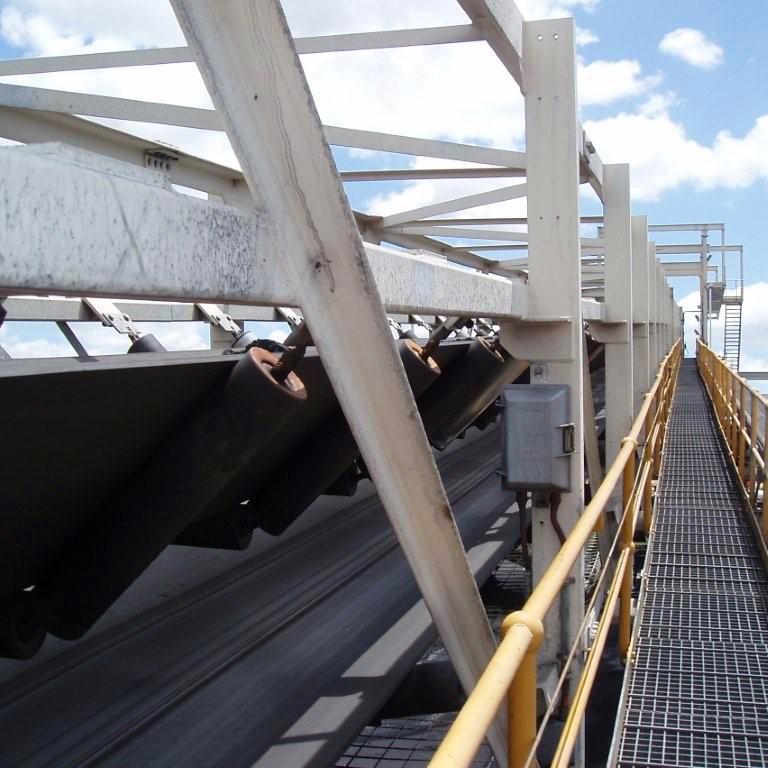

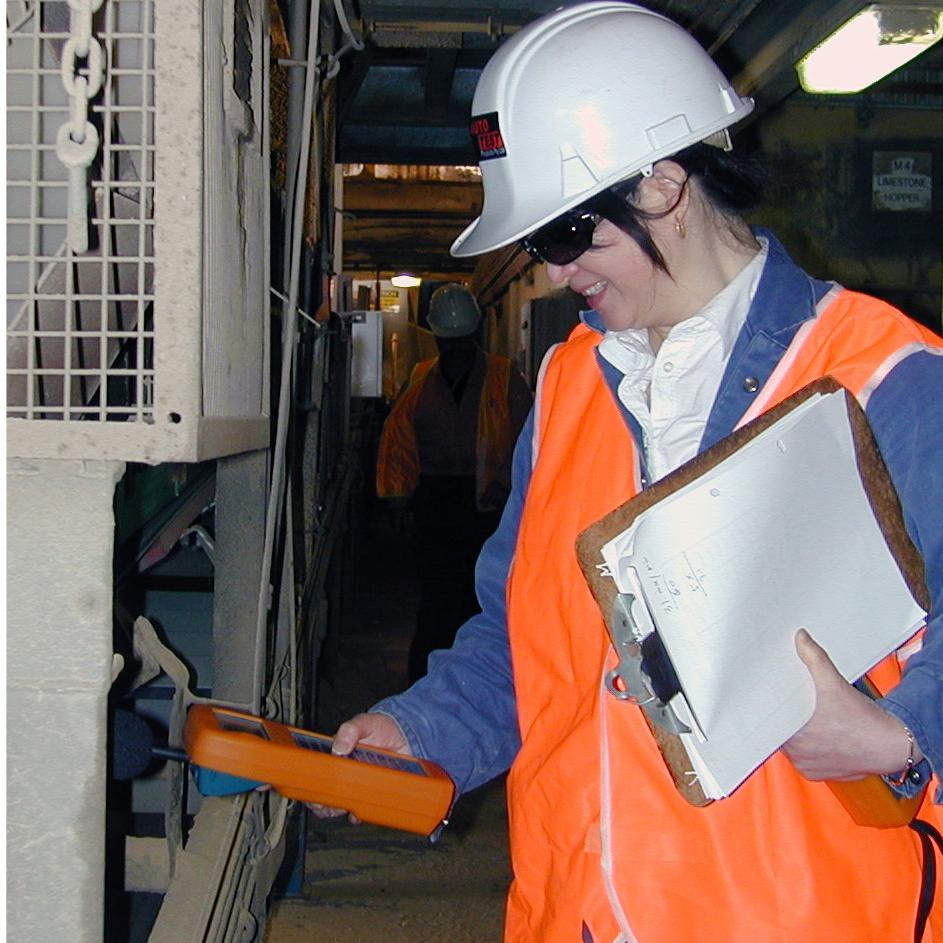

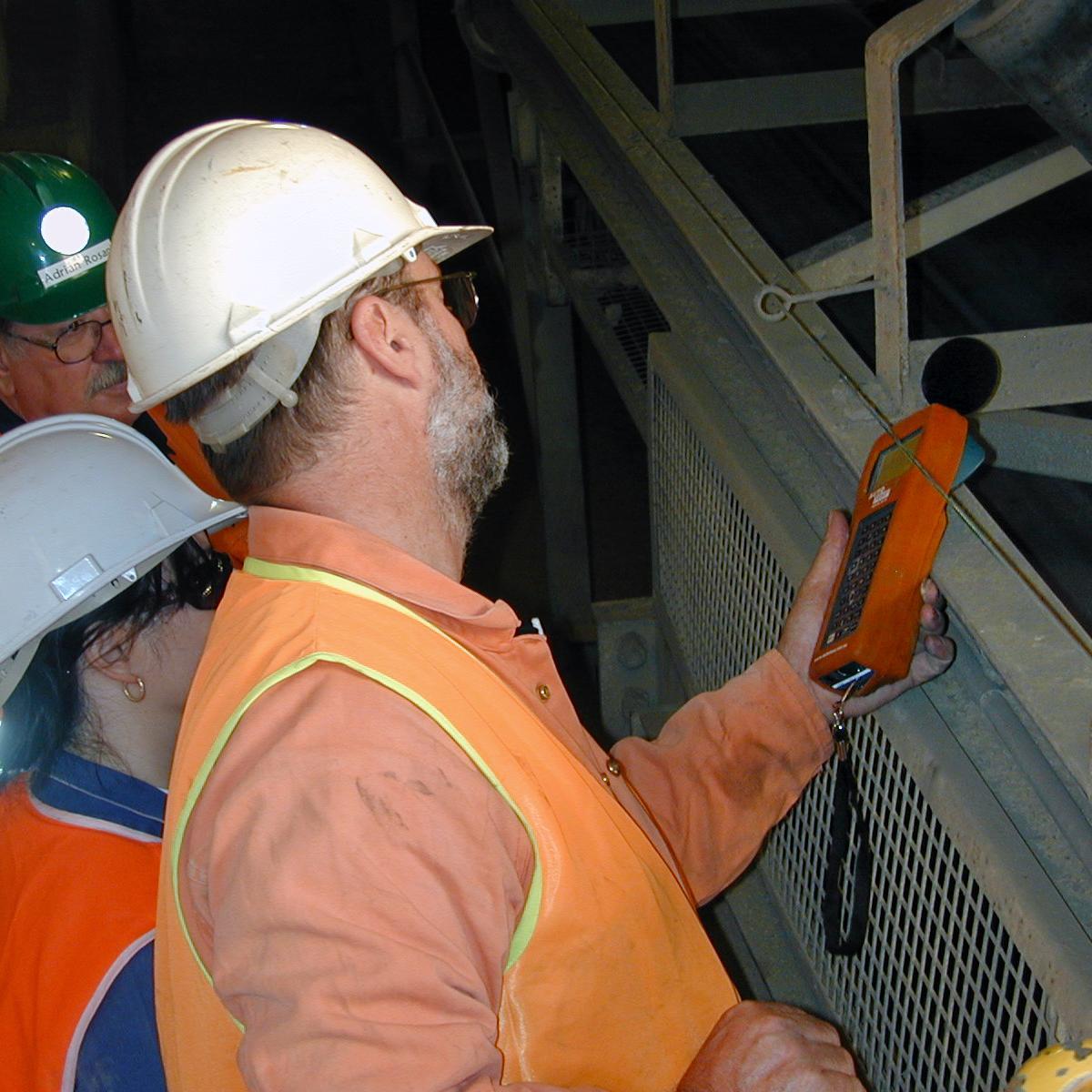

Failure of conveyor systems is a significant problem in the mining industry, causing extended downtime, lost productivity, and increased risk of fire.
The most common cause of conveyor failure (and belt damage) is bearing seizure in the idlers supporting the belt.
Inspectors currently use subjective assessment, without scientific evidence, to detect faulty bearings. This highly unreliable and subjective method only detects bearings in the late stage of fragmentation, resulting in costly unscheduled maintenance.
Benefits:
Specifications:
| Measurement method | Sound pressure |
| Frequency range (3dB point) | 80Hz to 5kHz |
| Dynamic range | 72dB |
| Max sound pressure level | 110dB |
| Maximum measurement distance | 3.0m |
| Directionality | Uni directional |
| Operating modes | Monitoring and diagnosis |
| Response time | 1.0s in Monitoring Mode, Approx. 3km/h |
| Gain | Auto-ranging |
| Alarm | Flashing LED, Audible Tone |
| Displayed parameters | Bearing O.K./Faulty (All limits are variable by software command) |
| Applicability* | Pre – programmed for common bearing types of Power |
| Supply | In – built rechargeable batteries (“Battery Too Low” indicated in display, automatic power – off below 2.2V) |
| Operating time | 16 hours continuous |
| IP Rating | IP55 |
| Microphone | 7.5mm electret, frequency range 50Hz − 15kHz |
| Display | Backlit 240 x 160 graphics |
| Keypad | 40 keys tactile membrane keypad |
| Weight | 480g |
| Physical dimensions | 260 x 120 x 50mm |
| Temperature range | 0º − 45ºC |
| Humidity range | 20% − 90% |
Benefits:
Specifications:
| Measurement method | Sound pressure |
| Frequency range (3dB point) | 80Hz to 5kHz |
| Dynamic range | 72dB |
| Max sound pressure level | 110dB |
| Maximum measurement distance | 3.0m |
| Directionality | Uni directional |
| Operating modes | Monitoring and diagnosis |
| Response time | 1.0s in Monitoring Mode, Approx. 3km/h |
| Gain | Auto-ranging |
| Alarm | Flashing LED, Audible Tone |
| Displayed parameters | Bearing O.K./Faulty (All limits are variable by software command) |
| Applicability* | Pre – programmed for common bearing types of Power |
| Supply | In – built rechargeable batteries (“Battery Too Low” indicated in display, automatic power – off below 2.2V) |
| Operating time | 16 hours continuous |
| IP Rating | IP55 |
| Microphone | 7.5mm electret, frequency range 50Hz − 15kHz |
| Display | Backlit 240 x 160 graphics |
| Keypad | 40 keys tactile membrane keypad |
| Weight | 480g |
| Physical dimensions | 260 x 120 x 50mm |
| Temperature range | 0º − 45ºC |
| Humidity range | 20% − 90% |
